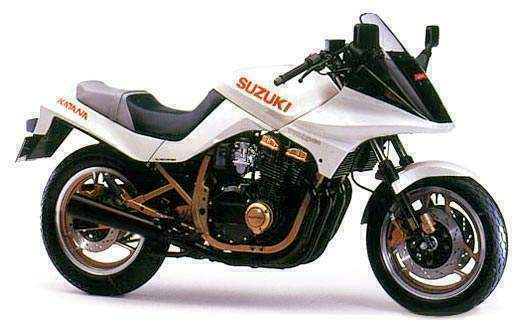

Suzuki GSX 750S3 Katana

Read more about this motorcycle. Specification, detail, pictures and video. Please comments and give rating, tell others about it. Feel free to look around, we open 24 hours a day.

Make ModelSuzuki GSX750S3 Katana
Year: 1984
Engine: Air cooled four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Capacity: 747
Bore x Stroke: 67 x 53 mm
Compression Ratio: 9.4:1
Induction: 4x 32mm Mikuni RS32SS carbs.
Ignition / Starting: Transistorized / electric
Max Power: 84 hp 61.2 kW @ 9500 rpm
Max Torque: 68 Nm @ 8500 rpm
Transmission / Drive: 5 Speed / chain
Gear Ratio1st 15.23(8.1) 2nd 10.67(11.5) 3rd 8.33(14.7) 4th 6.88(17.8) 5th 5.61 (21.1)
Frame: Welded tubular steel double cradle Frame: , rectangular and oval section.
Front Suspension: telescopic forks with four preload settings and four-way adjustable progressive compression damping, 135mm wheel travel.
Rear Suspension: Full Floater rising rale linkage system, single spring/damper unit with remote hydraulic preload adjustment. 90mm wheel travel.
Front Brakes: 2x 280mm discs 2 piston caliper
Rear Brakes: Single 270mm disc 1 piston caliper
Front Tire: : 120’80V16
Rear Tire: : 130/80 V18
Seat Height760 mm
Dry-Weight: 212 kg
Fuel Capacity: 21 litres
Consumption average17.6 km/lit
Standing ΒΌ Mile 12.0 sees a! 175 km/h (est)
Top Speed206 km/h
