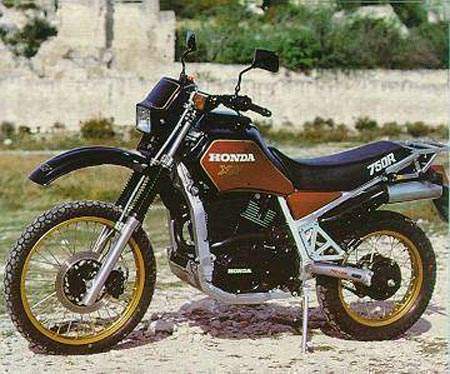

Make ModelHonda XLV 750
Year: 1985
Engine: Air/oil cooled, four stoke, 45°V-four cylinders, SOHC. 3 valves per cylinder:
Capacity: 749
Bore x Stroke: 79.5 x 75.5 mm
Compression Ratio: 8.4:1
Induction: 2x Keihin VD Throttle bore 36 mm
Ignition / Starting: CDI / electric
Max Power: 61 hp 45 KW @ 7000 rpm
Max Torque: 7 kg-m 68.4 Nm @ 5500 rpm
Transmission / Drive: 5 Speed / shaft
Gear Ratio1st 2.500:1 (40116) 2nd 1.750:1 (35120) 3rd 1.291:1 (31124) 4th 1.000:1 (28128) 5th 0.833:1 (25130
ClutchWet, multi-plate
Frame: Double cradle
Front Suspension: Telescopic forks, 200mm wheel travel.
Rear Suspension: Air assisted Pro-Link, 180mm wheel travel
Front Brakes: Single 276mm disc 2 piston caliper
Rear Brakes: Drum
Front Tire: : 90/90 21
Rear Tire: : 130/80 17
Seat Hieght855 mm
Dry-Weight: / Wet-Weight: 195 kg / 212 kg
Fuel Capacity: 19.5 Litres
Top Speed165-170 km/h
ReviewsXLV owners / 1985 Honda XLV750R Test Report
ManualsHonda XLV750R Tech Tips / .revoyet.free / zoic.org / ourwinds.ch / xs4all.nl
Source Which Bike 1984
